Eclipse E2

The razor thin Eclipse series is designed to absolutely melt over your wrist. Over two years of engineering and development went into this absolute masterpiece of a wristwatch. With its 3mm leading edge case blending into its 3mm thick flat link and chamfered bracelet, the feeling is that this watch  actually becomes part of your wrist. The bracelet is tapered from 26mm all the way down to 18mm at the clasp adding to its comfort. Each bracelet link has its own pivot at just 2mm apart to allow the bracelet to lay perfectly. With a set of solid, floating 3D luminous markers around the edge of the dial, legibility and symmetry is unmatched. While this is a perfect watch for any formal occasion, its also perfect as a daily watch ready to handle anything with its 100 meter water resistance and anti-shock movement mounting. So how did we make a watch that looks and feels so delicate and beautifully thin, yet retains our legendary LUM-TEC durability? Years of engineering and truly advanced construction. Extreme comfort, intense luminosity, quality and finishing levels punching far above its weight, this watch is sure to impress even the most serious watch fans.

Assembled by hand in Ohio
- 42mm case width excluding crown
- Integrated 26 to 18mm tapered bracelet, 3mm thick
- 9.1mm thick case with 3mm leading edge
- Lug to lug length 47mm
- Surgical grade forged and heat-treated 316L stainless steel case

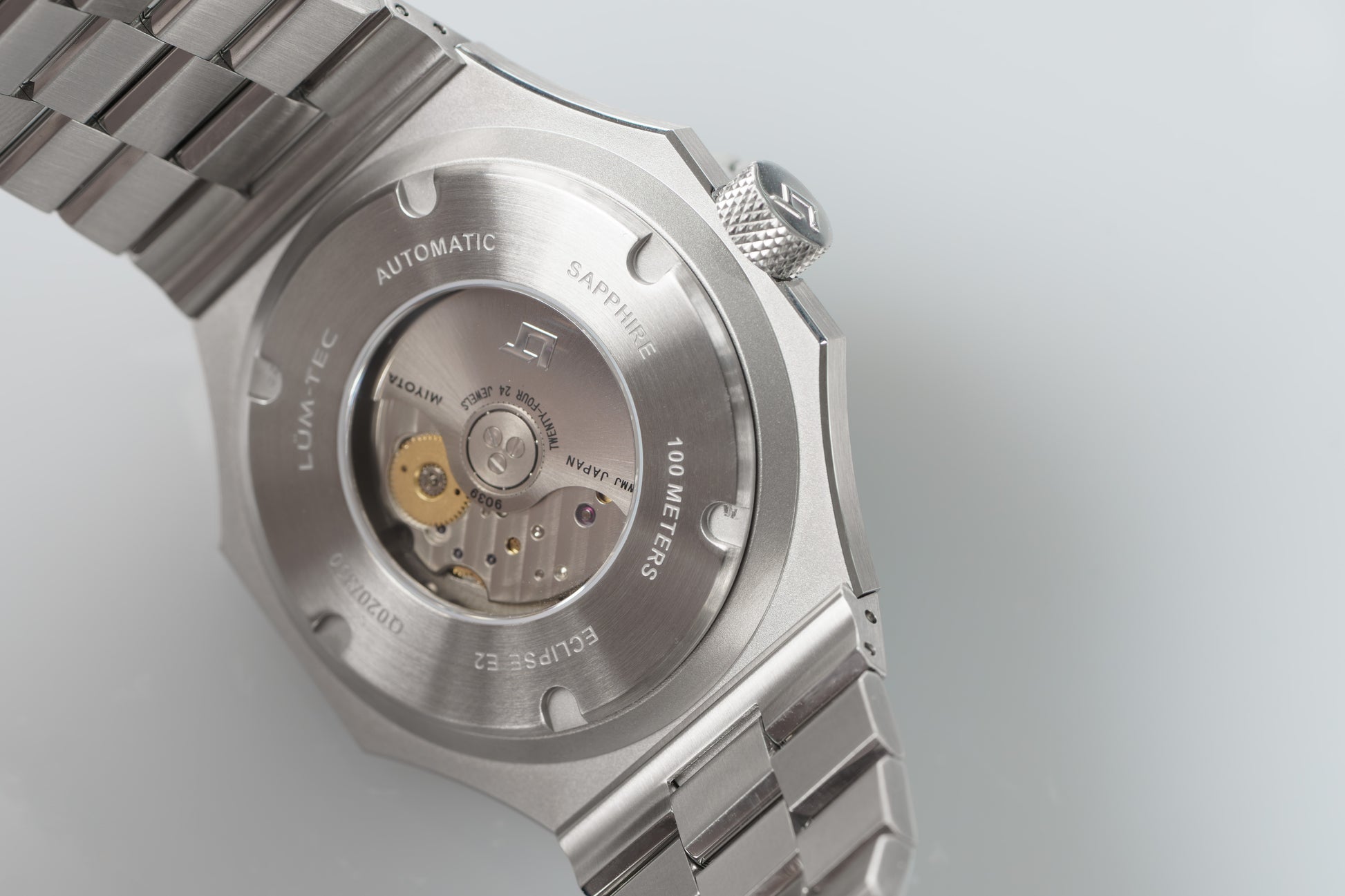

- Threaded sapphire display caseback
- Highline brushed and polished finishing
- Anti-fingerprint coating
- Sapphire crystal with military-grade double side anti-reflective coating
- High precision tuned Miyota 9039 automatic movement
- Adjusted in 6 positions after full assembling for maximum accuracy
- Anti-shock movement mounting system
- 100 meters/330 ft. water resistance
- Bi-layer matte and lacquer black 3D dial with extruded luminous index
- MDV® Luminous Technology custom developed grade X1 Swiss C3 GL (green glow) in 30 layers
- Premium, diamond-cut hands with micro polishing and filled with X1 grade C3 Super-Luminova
- Screw lock crown with double diamond sealing system
- High-tech Viton® gaskets
- Lifetime free movement timing regulation
- Lifetime free pressure testing and seal lubrication/cleaning
- 2-year international limited warranty (fully transferable)
- Limited and numbered series of 300 worldwide

The Eclipse series cases are made from 316L Surgical grade stainless steel. We use forged construction to re-align the metal grain structure to increase fatigue strength by 37% over a typical cast steel case. This also eliminates voids and porosity in the metal, allowing for the finest possible finishing level.

A heat treatment is done to improve the stability of the metal during the forging process and to harden the metal surface after finishing.

After a micro fine brushed and polished finish is done by hand, We add a physical vapor deposited anti-fingerprint coating to fill any microscopic pores from finishing and leave an even smoother finish that prevents oily smudges and fingerprints on the case.

The thick, Hytrel mounted sapphire is enhanced by the military grade anti-reflective DLC coating applied to the inside of the sapphire.

Silicone lubricated, double Viton gasket seals are in the crown and the tightly sealed, threaded caseback to resist saltwater, chemicals and extreme hot and cold environments. Our sealing system has been tested to exceed our 100 meter depth rating by 30% ensuring complete sealing in not only water depths but in all environments.

Our anti-shock movement mounting system allows the movement to absorb impacts ensuring reliability remains even after an accidental drop on the ground or a solid bang against a wall.

A custom designed, integrated 3mm thick bracelet tapers from 26mm quickly down to 18mm for supreme comfort. We placed the bracelet pivots alternating at just 2mm apart for maximum flexibility. The links are chamfer cut and polished on the facets to give a smooth feel and a nice flash effect from the flat link faces. A low profile butterfly clasp was chosen to eliminate bulk from a standard clasp buckle on this otherwise extremely thin watch. Designed to be easy to re-size and fit just about any wrist with high comfort and a nearly weightless feel.

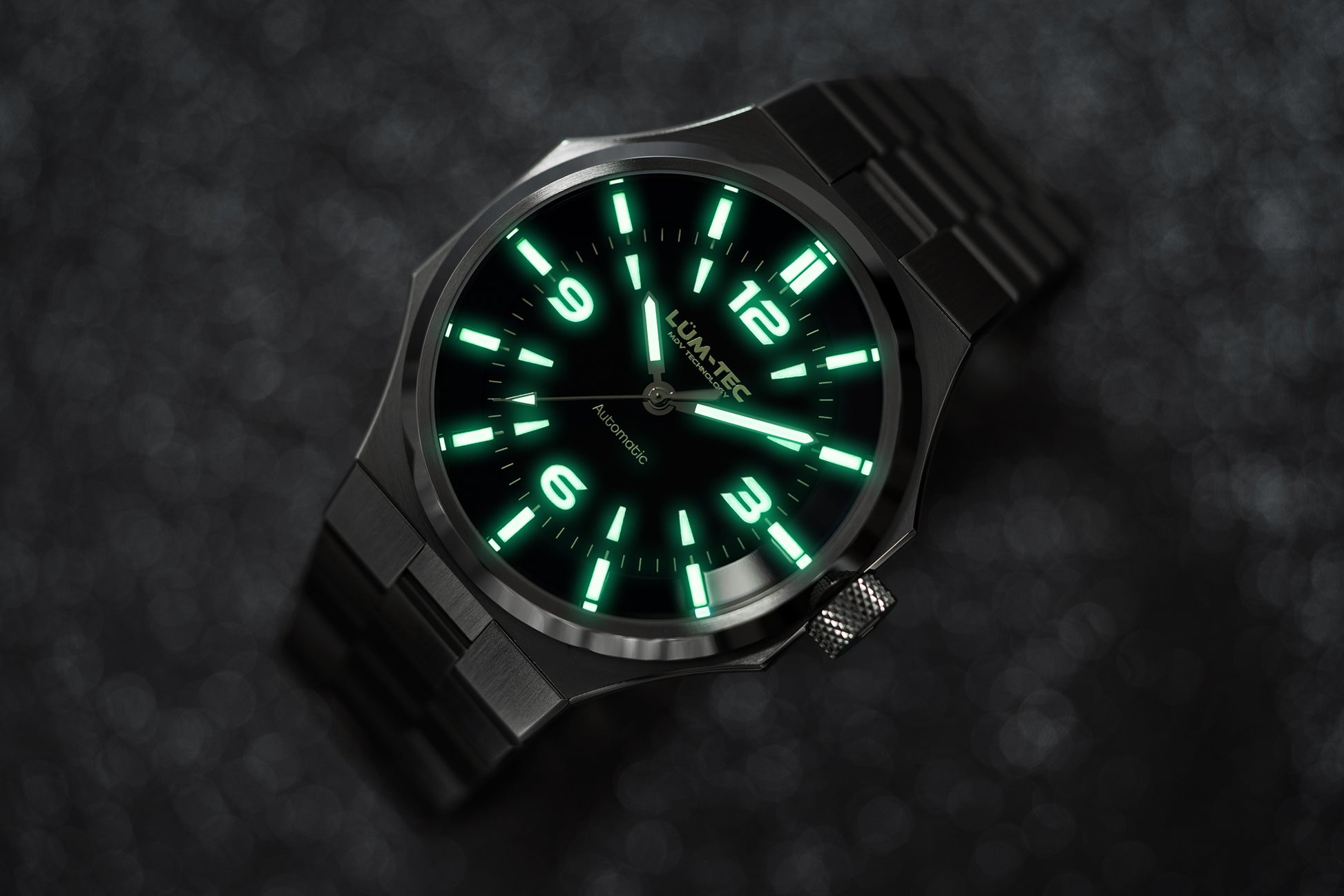

The dial is printed with over 30 layers of top grade Super-Luminova material over a chemical coated, reflective base. This ensures maximum performance of the dial in dark conditions by forcing all luminous output of the material to face out the front of the watch and not lost back into the dial from the backside. The angled stadium ring with floating 3D luminous index makes for a dynamic and easy to read layout with incredible lume performance. Our dials have been tested and verified by RcTritec in Switzerland to be top performers of the Super-Luminova material.

We back our watches with free battery changes, seal cleaning and lubrication, pressure testing and free regulation of our automatic and mechanical movements, for life! Right here in Ohio. We love to see our watches back in after 15+ years of strong service. By offering this service, not only do our customers get a confident ownership experience, we see first hand how our watches hold up over time in the real world and use this information to evolve our engineering and development for future models.

All LUM-TEC watches are designed and engineered in Ohio 100% from the ground up.  Every watch is individually assembled here and fully tested to ensure absolute quality. Since 2007, we have quietly produced top quality watches for over 100 different brands around the world, US government, Swat teams and much more. LUM-TEC has always been our ultimate proving ground. The example of our top capabilities. No compromises, ever.
